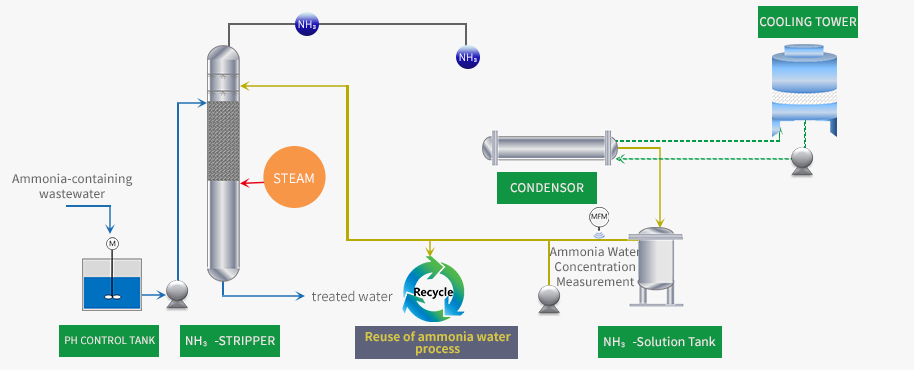

The ammonia recovery system is the process of recovering ammonia from wastewater which contain high concentration of ammonia.
Recovered ammonia solution can be reused in the manufacture process and
it can save operating and manufacturing cost through recycling.
100,000 ppm or less
50 ppm or less
28 % or less
Battery Material Process
Polysilicon Material Process
Urban Mining Valuable Material Recovery Process
Liquid Waste Disposal Process
Process for Using Ammonia as raw material
[Patent] Ammonia recovery device and recovery method
The ammonia recovery concentration is Max. 28%
Recovery of high purity ammonia without foreign substances through evaporation and condensation.
Saving significant cost by reusing recovered ammonia water in the production process.
It needs smaller space compare with biological treatment process

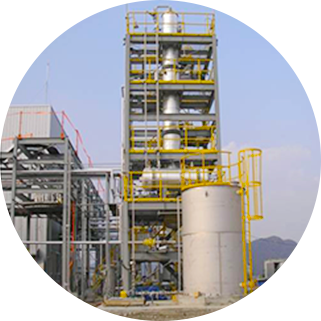

| Capacity | 75㎥/Day |
|---|---|
| Inflow T-N | 8,500mg/L |
| Outflow T-N | 30mg/L |
| Con’c of Ammonia solution | 25% |

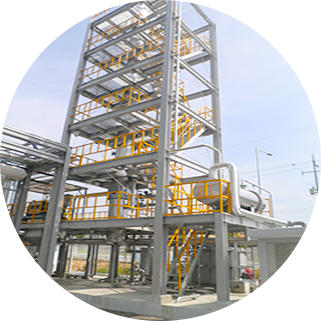

| Capacity | 240㎥/Day |
|---|---|
| Inflow T-N | 10,000mg/L |
| Outflow T-N | 50mg/L |
| Con’c of Ammonia solution | 25% |

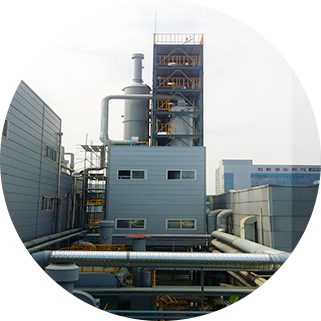

| Capacity | 75㎥/Day |
|---|---|
| Inflow T-N | 30,000mg/L |
| Outflow T-N | 50mg/L |
| Con’c of Ammonia solution | 25% |
