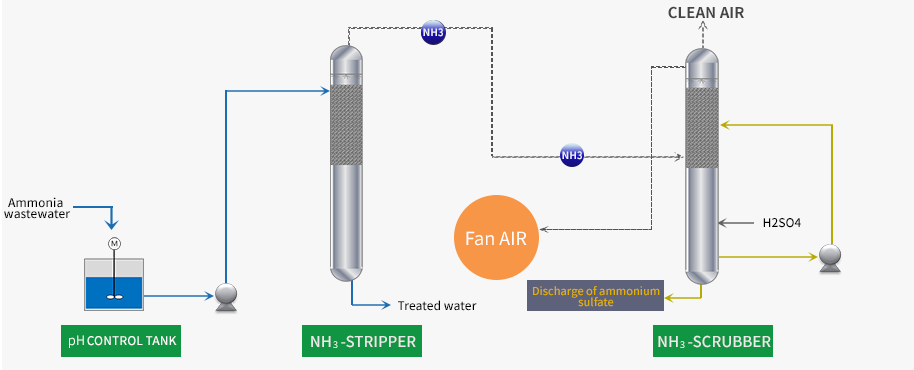

NH3-STRIPPER process is based on the principle of mass transfer.
Air is a carrier gas and ammonia gas in the wastewater move to the air through
wastewater spraying within the NH3-STRIPPER.
At the result, ammonia is removed from wastewater.
The physically degassed ammonia gas is absorbed
and removed from the NH3-Scrubber in form of Ammonium Salt.
15,000 ppm or less
50 ~ 150 ppm
Treated Water from Digester
Landfill leachate
Ammonium fluoride wastewater
Metal Smelting Industry
[Patent] The system & equipment for treating wastewater which contain ammonia
The presence of ammonia in wastewater exists in two forms,
ammonium ion and ammonia gas, depending on the pH and temperature.
NH4+ + OH- → NH3(g) + H2O
Physical degassing is possible when ammonia in wastewater is converted into ammonia gas form.
Suitable for high-concentration ammonium wastewater that is difficult to treat in biological treatment
The constant efficiency and simple operation due to physical treatment
The reasonable operation cost compare with biological and chemical treatment
pH
Temperature
AIR Volume
Wastewater/air
contact area
NH4+ + NaOH → NH3(g) + Na+ + H2O
NH3(g) + H2O → NH4OH
2NH4OH + H2SO4 → (NH4)2SO4 + 2H2O

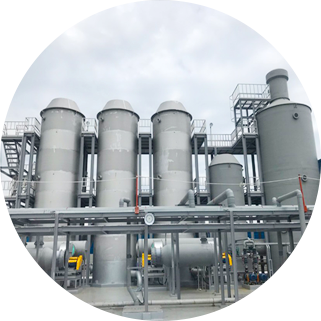

| Capacity | 400㎥/Day |
|---|---|
| Inflow T-N | 2,500mg/L |
| Outflow T-N | 20mg/L |
| Con’c of (NH4)2SO4 | 40% |

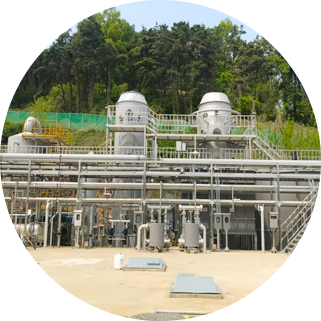

| Capacity | 400㎥/Day |
|---|---|
| Inflow T-N | 2,500mg/L |
| Outflow T-N | 20mg/L |
| Con’c of (NH4)2SO4 | 40% |
| Capacity | 660㎥/Day |
|---|---|
| Inflow T-N | 20,000mg/L |
| Outflow T-N | 40mg/L |
| Con’c of (NH4)2SO4 | 40% |
